The global demand for lithium has surged due to the rapid expansion of new energy industries, including electric vehicles and energy storage systems. Salt lakes account for over 80% of China’s total lithium reserves, yet their development is hindered by high magnesium-lithium ratios (up to 1577:1 in some cases), complex impurity compositions, and harsh high-salinity, corrosive environments. Traditional extraction technologies such as precipitation, adsorption, and membrane separation struggle with low separation efficiency, high energy consumption, frequent equipment failure, and elevated production costs. Solvent extraction has emerged as a mainstream industrial solution, and mixer-settlers—core liquid-liquid extraction equipment—have become the preferred choice for salt lake lithium extraction. They address critical industry pain points by enabling high separation efficiency, robust process adaptability, stable long-term operation, and cost-effective, eco-friendly production. This article systematically explores the unique advantages of mixer-settlers in salt lake lithium extraction, analyzing their working mechanism, core benefits, and practical application value.

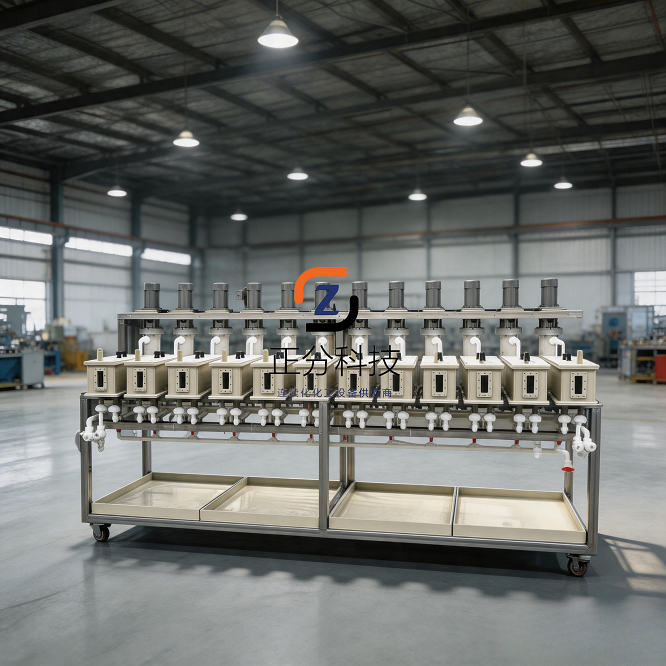

A mixer-settler is a staged liquid-liquid extraction device composed of interconnected mixing chambers and settling chambers, operating on the principles of turbulent mixing and gravity phase separation.
Mixing Stage: Lithium-containing brine (aqueous phase) and organic extractant (e.g., TBP-kerosene system) enter the mixing chamber, where agitators disperse them into micron-scale droplets. This maximizes interfacial contact area, accelerating the complexation reaction between lithium ions and the extractant.
Settling Stage: The mixed emulsion overflows into the settling chamber, where gravity drives rapid stratification into a lithium-loaded organic phase and a lithium-depleted aqueous phase (raffinate).
Multi-Stage Countercurrent Operation: Industrial systems use 4–6 stages of countercurrent extraction, followed by 3–4 stages of stripping, to achieve deep lithium-magnesium separation and high lithium recovery. This simple yet effective structure ensures continuous, automated operation from feedstock to final lithium solution, perfectly matching the large-volume, long-cycle production requirements of salt lakes.
Salt lake brines vary widely in lithium concentration, magnesium-lithium ratio, and impurity profile (e.g., boron, sodium, potassium), demanding customizable, flexible extraction solutions. Mixer-settlers excel in this regard.
Adaptability to High Magnesium-Lithium Ratios: Unlike membrane separation (prone to fouling) or adsorption (low capacity), mixer-settlers optimize stages, agitation intensity, and extractant formulations to achieve magnesium-lithium separation coefficients exceeding 500 for Mg/Li > 20 brines, with total lithium recovery above 95%.
Tolerance for Diverse Feedstocks: They handle low-concentration lithium mother liquors, high-salinity raw brines, and complex leachates seamlessly. Adjusting operational parameters (phase ratio, residence time, temperature) enables “one lake, one strategy” customization.
Corrosion Resistance for Harsh Environments: Constructed from PPH, PVC, or 316L stainless steel, mixer-settlers withstand strong acids, high salinity, and corrosive impurities, ensuring stable operation in the extreme conditions of Qinghai and Tibet salt lakes.
Maximizing lithium recovery while minimizing impurity carryover is critical for economic viability. Mixer-settlers deliver superior separation performance.
Efficient Two-Phase Contact & Separation: Optimized agitator designs (axial + radial flow impellers) and internal baffles prevent incomplete mixing and scaling, ensuring lithium extraction efficiency > 90% per stage. Multi-stage 串联 (e.g., 6-stage countercurrent) boosts overall recovery from 65–80% (traditional processes) to 96–98%.
High-Purity Lithium Production: Effective removal of magnesium, boron, and other impurities produces high-quality lithium solutions suitable for battery-grade lithium carbonate (≥99.5% purity) with minimal additional refining.
Reduced Lithium Loss: By efficiently recovering lithium from tailings and mother liquors, mixer-settlers convert “hidden lithium resources” into valuable products, improving resource utilization and reducing waste.
Salt lake lithium extraction requires large-throughput, continuous, long-term stable operations—an area where mixer-settlers outperform centrifugal extractors and other alternatives.
Flexible Scale-Up: Modular design allows seamless scaling from pilot plants (tons/day) to industrial mega-projects (10,000 tons/year) by adding stages or parallel units.
High Operational Stability: With no high-speed rotating parts, mixer-settlers have low failure rates and continuous service life > 8,000 hours. They tolerate solid particles in brines better than centrifugal extractors, reducing downtime for maintenance.
Low Maintenance Costs: Simple mechanical design enables easy inspection and repair. Maintenance costs are 60% lower than older extraction equipment, supporting long-term, cost-effective operation.
In an era of strict environmental regulations and cost competition, mixer-settlers offer compelling economic and eco-friendly benefits.
Low Energy Consumption: Energy use is only 1/3 that of centrifugal extractors, significantly reducing operational costs for large-scale facilities.
High Extractant Reuse: Closed-loop systems achieve extractant recycling rates > 98%, minimizing solvent loss and reducing raw material expenses.
Reduced Environmental Impact: Low solvent volatility and minimal leakage decrease air and water pollution. The efficient separation process also reduces waste discharge, aligning with global sustainability goals.
Mixer-settlers have emerged as a transformative technology for lithium extraction from complex salt lake brines, addressing core industry pain points of low efficiency, poor adaptability, high costs, and environmental concerns. Their unique combination of process flexibility, high separation efficiency, scalable stable operation, and economic-environmental benefits makes them irreplaceable for developing China’s high magnesium-lithium ratio salt lake resources. As the new energy sector continues to grow, mixer-settlers will remain central to advancing salt lake lithium extraction technologies, ensuring a stable, sustainable supply of lithium and supporting the global transition to clean energy.
